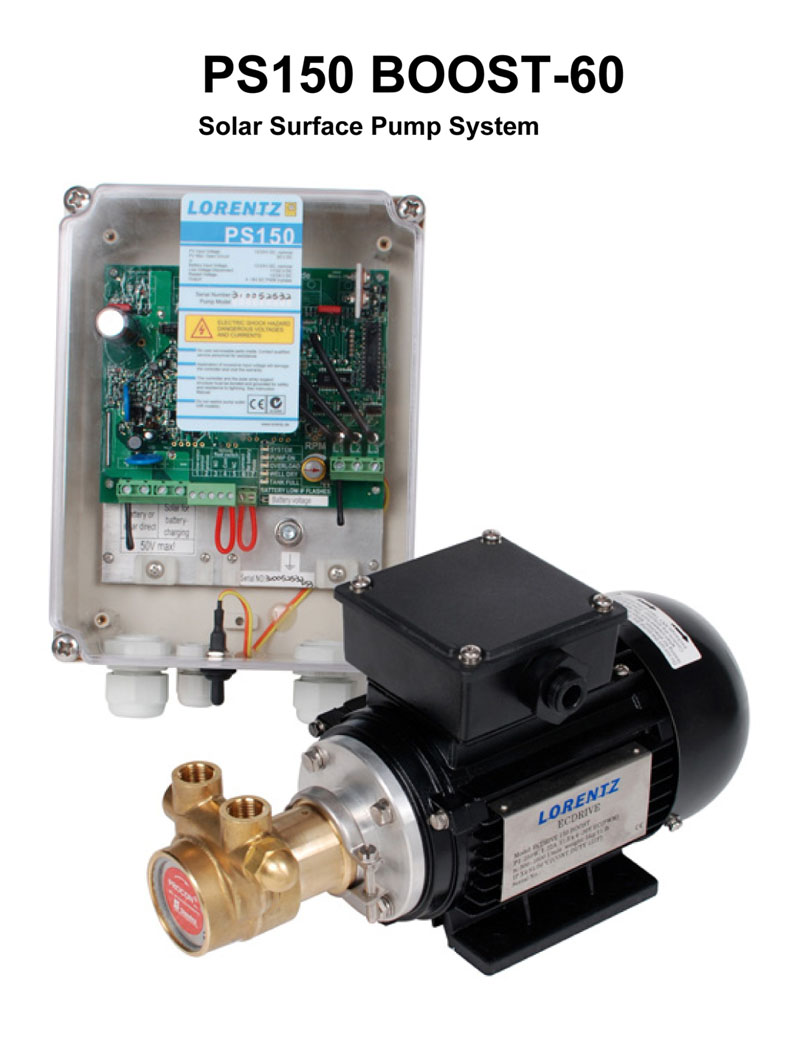

PS150 BOOST-60 – Solar Surface Pump System

System OverviewPS150-Boost-60 - Solar Surface Pump System

  • Head max. 500 ft
  • Flow rate max. 1.1 USG/min

Controller PS150

  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and over temperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Battery operation: Integrated low voltage disconnect
  • Power max. 0.30 kW
  • Input voltage max. 50 V
  • Optimum Vmp* > 17 V
  • Motor current max. 18 A
  • Efficiency max. 98 %
  • Ambient temp. -22…122 °F
  • Enclosure class IP54

Motor ECDRIVE 150-BOOST

  • Maintenance-free brushless DC motor
  • Premium materials, stainless steel: AL/AISI 304
  • No electronics in the motor
  • Rated power 0.54 HP
  • Efficiency max. 92 %
  • Motor speed 280…1,750 rpm
  • Insulation class F
  • Enclosure class IPX4

Pump Unit PU BOOST-60 (Motor, Pump End)

  • Water temperature max. 176 °F
  • Suction head max. 10 ft

Spec Sheet: LORENTZ_PS150_boost-60

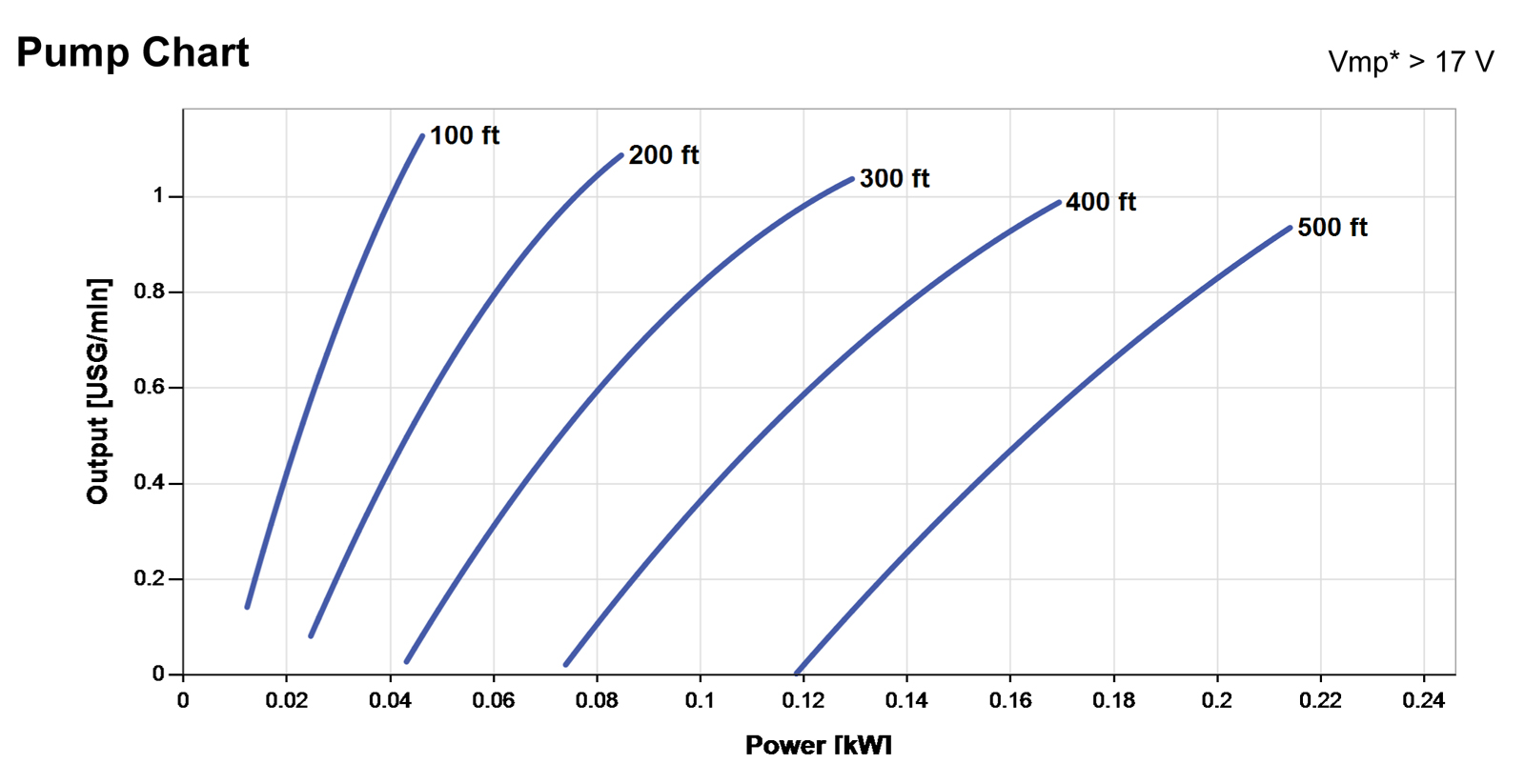

PS150-Boost-60-PumpChart

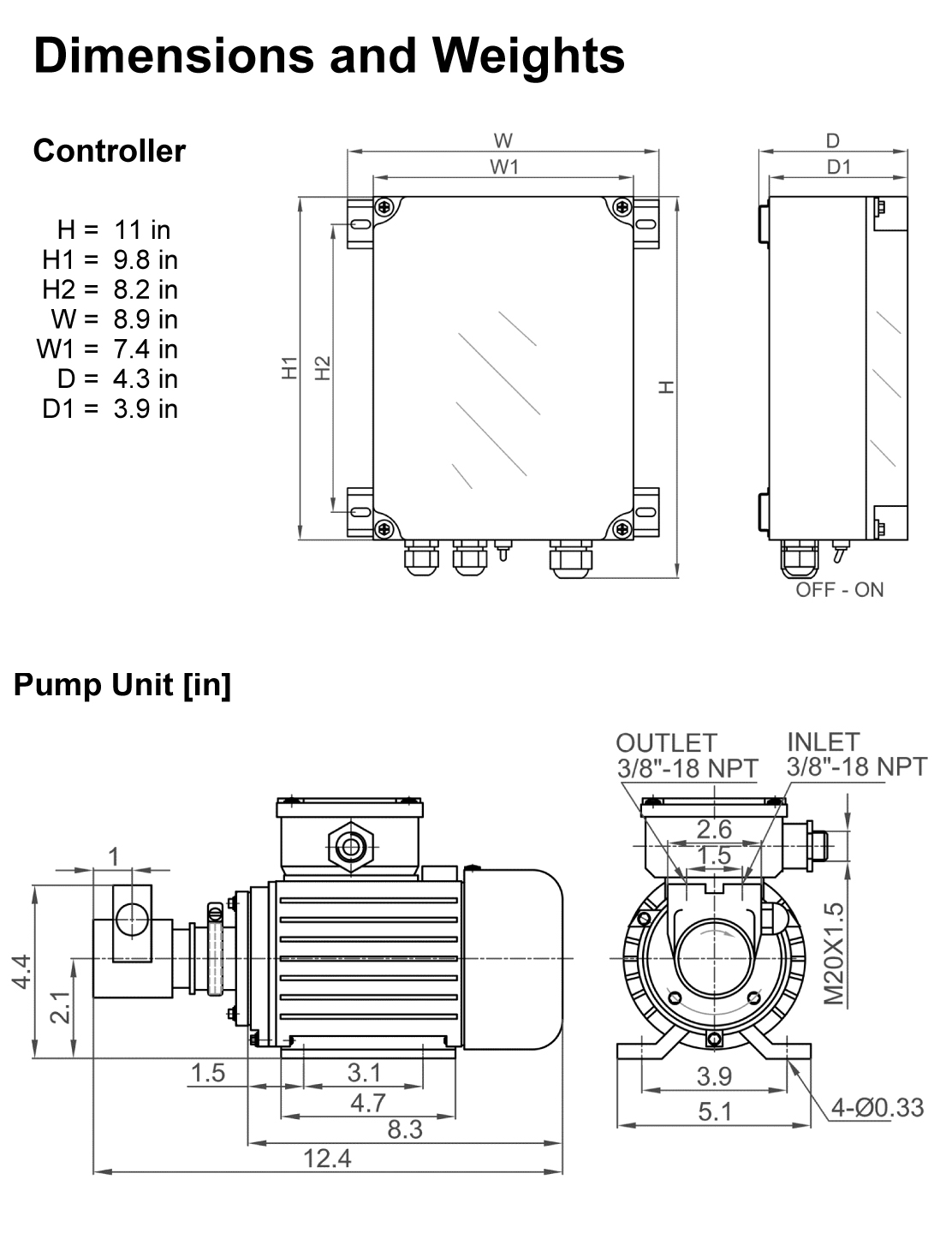

PS150-Boost-60-Dimensions

*Vmp: MPP-voltage under Standard Test Conditions (STC): 1000 W/m² solar iradiance, 25 °C cell temperature
