PS150 BOOST-125 – Solar Surface Pump System

PS150 BOOST-125 - Solar Surface Pump SystemOverview

  • Head max. 350 ft
  • Flow rate max. 2.1 USG/min

Controller PS150

  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Battery operation: Integrated low voltage disconnect
  • Power max. 0.30 kW
  • Input voltage max. 50 V
  • Optimum Vmp* > 17 V
  • Motor current max. 18 A
  • Efficiency max. 98 %
  • Ambient temp. -22…122 °F
  • Enclosure class IP54

Motor ECDRIVE 150-BOOST

  • Maintenance-free brushless DC motor
  • Premium materials, stainless steel: AL/AISI 304
  • No electronics in the motor
  • Rated power 0.54 HP
  • Efficiency max. 92 %
  • Motor speed 280…1,750 rpm
  • Insulation class F
  • Enclosure class IPX4

Pump End PE BOOST-125

  • Premium materials: brass

Pump Unit PU BOOST-125 (Motor, Pump End)

  • Water temperature max. 176 °F
  • Suction head max. 10 ft

Spec Sheet: LORENTZ_PS150_boost-125

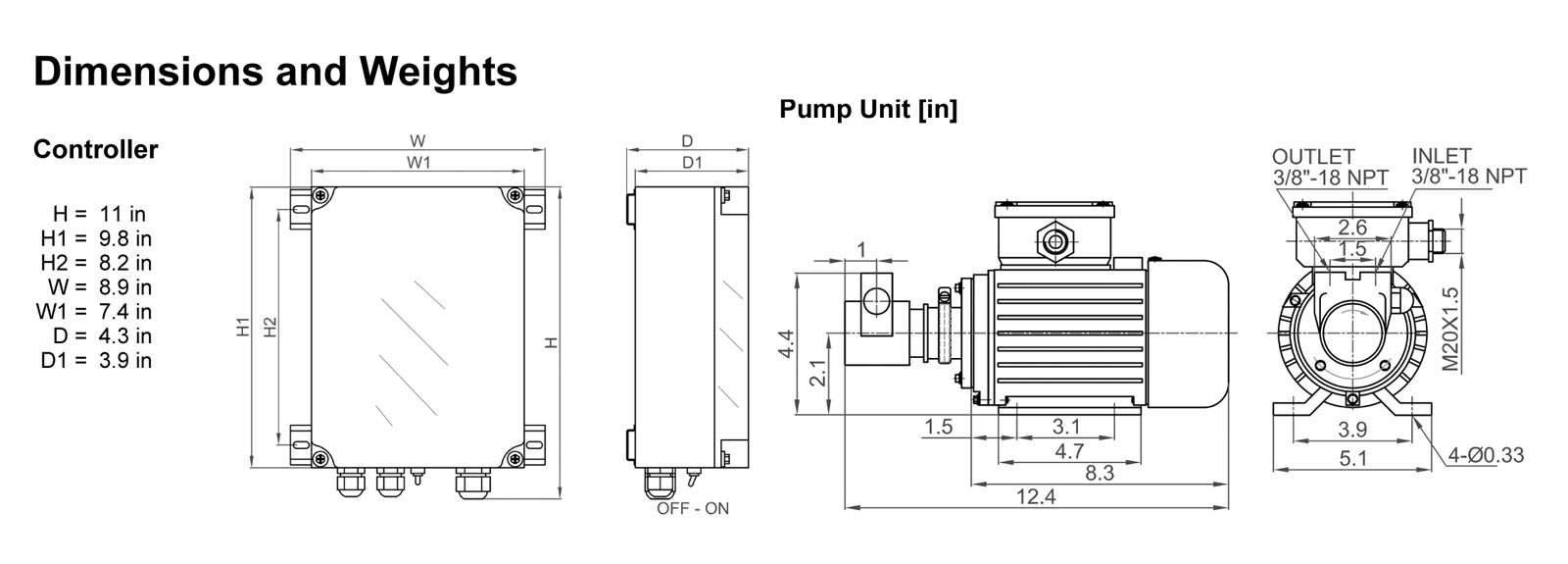

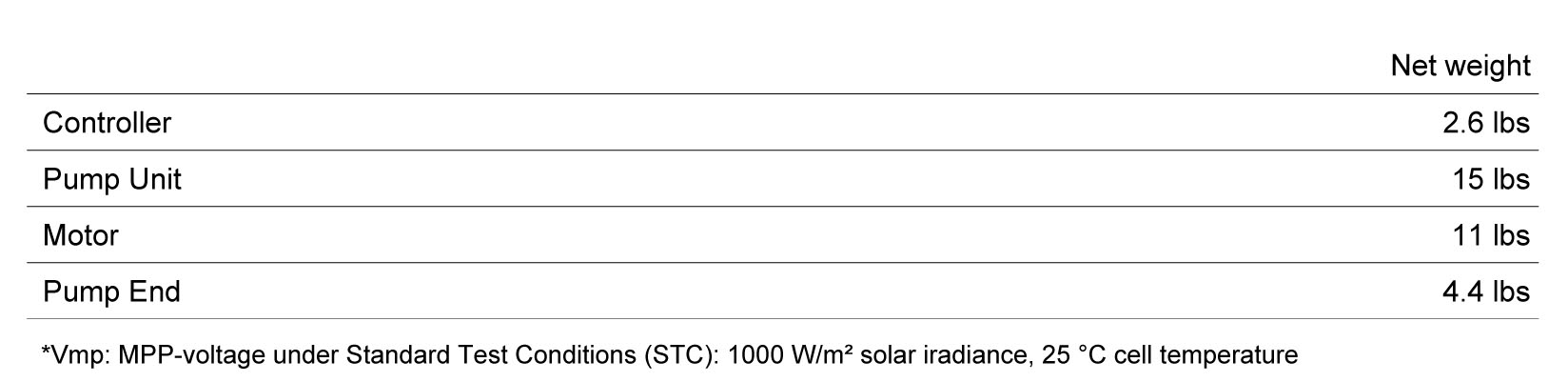

PS150-Boost-125-DimensionsPS150-Boost-125-PumpChartPS150-Boost-125-Weight
