Lorentz PowerPack PP600H AC – AC/DC converter

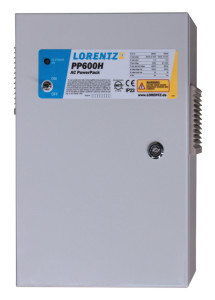

PowerPack PP600H ACAC/DC converter to supply PS600 and PS1200HR pump systems with backup power from a generator or mains supply for use with PS1200C (centrifugal pumps) and PS1800 use PP2000 AC PowerPack

The Problem

Some solar pumps may not provide sufficient flow under all conditions, especially in unusually cloudy weather or when sufficient storage cannot be provided.

The Solution

The LORENTZ PowerPack PP600H AC allows the pump to be powered byan AC generator or mains supply.

The solar array remains connected while the PowerPack acts as a changeover switch between the two power sources.

As soon as backup power is required the PowerPack can be switched on to bypass the solar generator and supply the pump from the auxiliary power source. The changeover from solar is done automatically after switching on the power supply for the PowerPack.

For a scheduled use of the PowerPack (e.g. to extend pumping time) a seperate time switch can be used to control the power supply to the PP600H. If the auxiliary power source is switched off again the PowerPack automatically returns to solar-direct operation.

The PowerPack is able to power the pump to its full capacity.

Operation

Connect the AC power source and turn on the Power Pack AFTER it has been connected to the pump controller. When the controller and the Power Pack are turned on, the System ON light should show on the controller, and the pump should start. When the Power Pack is turned OFF (or its AC source disconnected), the solar array will remain connected. When the pump is running on solar and the Power Pack is switched ON or OFF, the sudden transition may “surprise” the pump controller and cause the pump to stop. This is not a fault. It will restart automatically in about 2 minutes.

If the AC power source is from the utility line (not a generator),it is best to turn OFF the PowerPack or its AC supply when it is not needed. Otherwise, the PowerPack will draw power all the time. Switching can be done automatically using a timer switch on the AC line. Timer switches of many kinds are available from suppliers of electrical, swimming pool and irrigation equipment.

Once the PowerPack is turned OFF it will take up to 50 seconds for the POWER ON LED to be OFF. This indicates that there is still voltage stored in the capacitor.

Wire Sizes

All wires must be #14 AWG (2.5 mm2) or larger.

AC Input Voltage Selection

Selection must be made by connecting a wire from terminal 1 to either 2 or 3, as indicated on the terminal label. For 120 V AC, connect 1-2. For 240 V AC, connect 1-3.

Grounding

Bond the metal enclosure to the ground connections of the AC power source and the solar power system. See your pump’s instruction manual.

AC Power Source

Install a 15 A circuit breaker at the power source or distribution box.

AC Input

Connect AC power to terminals L and N. (For a 240 V connection, N does NOT indicate neutral.)

Solar Power In

Connect the + and – wires from the solar array disconnect switch to the SOLAR POWER IN terminals. The wires will need to be removed from the POWER IN terminals of the solar pump controller or from the disconnect switch, and diverted to the Power Pack.

DC Power Out

Connect two wires from the DC POWER OUT + and – terminals to the POWER IN + and – terminals in the solar pump controller.

Internal Fuse

There is a 15 A fuse in the upper left. This fuse should blow only if there is an electrical fault in the PowerPack, or the pump controller, or the wiring between them. It will NOT blow if the pump is short-circuited or overloaded. (In that case, the pump controller will stop the pump.)

Spare fuses are included in the parts bag. Additional fuses are available from electronic suppliers (5 × 20 mm, 15 A, time-delay). If the fuse continues to blow, the fault must be found and repaired. Substitution of a higher-rated fuse or bypassing the fuse will void the warranties of both the AC PowerPack AND the pump controller.

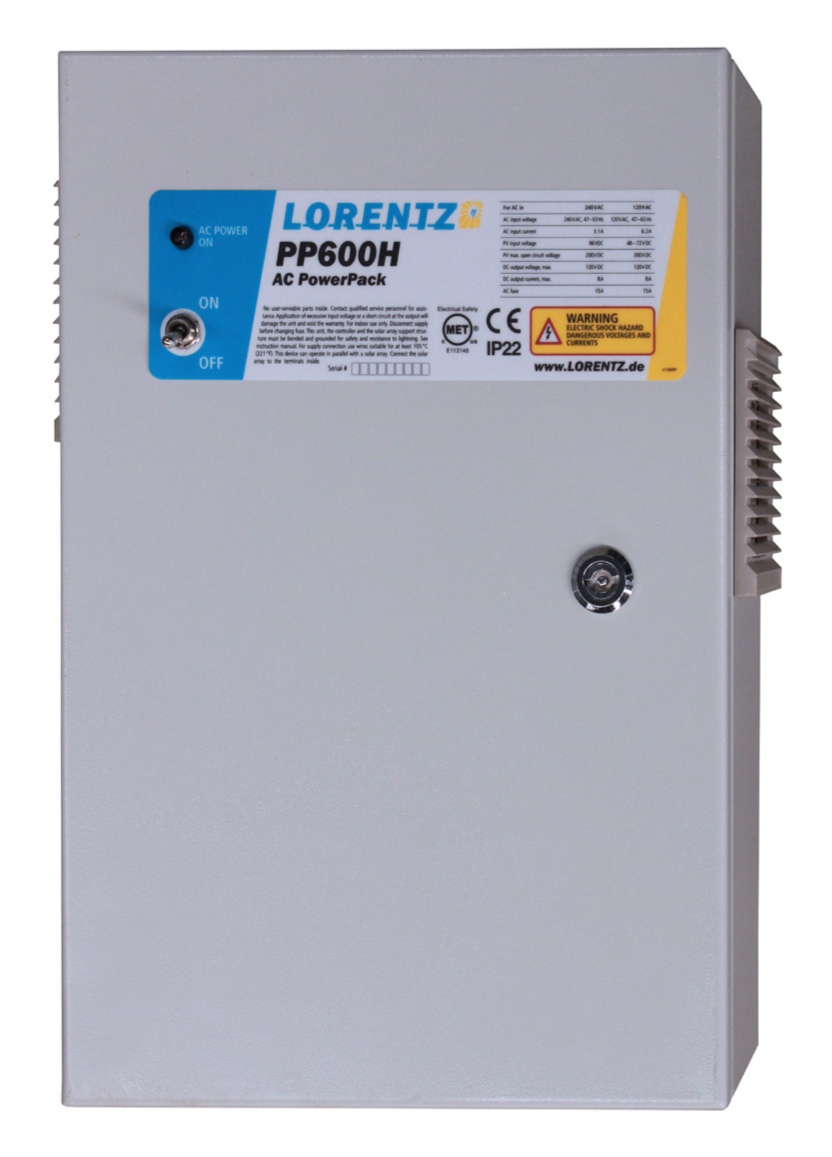

PowerPack PP600H AC - Mounting, drilling scheme, Fixing the mounting brackets, terminalsSpecifications

  • AC input: 120 V or 240 V (+-15 %), selectable, 47 to 63 Hz
  • AC input current: 6.2 A (120 V) or 3.1 A (240 V)
  • PV input voltage: Vmp: 130 V DC,depending on pump controller max. voltages
  • PV max open circuit voltage: 200 V DC
  • DC output: 120 V DC (no load), 700 W
  • overload protection: internal fuse, 15 A
  • enclosure: steel, gasket-sealed, indoor-use, hinged front cover with key-lock
  • must be protected from direct mid-day sun
  • IP22
  • ambient temperature: max. 45 C

Dimensions

  • 450 mm X 300 mm X 140 mm
  • 17.7 in x 11.8 in x 5.5 in
  • weight: 16 kg / 35 lbs

Warranty

Warranted to be free from defects in material and workman-ship for TWO YEARS from date of purchase.

Standards

Meets the requirements for CE

 lorentz_pp600h_ac_powerpack_manual_en-(PDF)
